不銹鋼方孔穿孔板:
方孔穿孔網格可以 代替圓孔類型。 它可以為更多的空氣和光線通過提供較大的開放區域,因此您可以在許多通風設備中找到方孔穿孔篩網。
方孔穿孔金屬有三種圖案: 直線圖案 (90°) 、60°交錯圖案和45°交錯圖案。

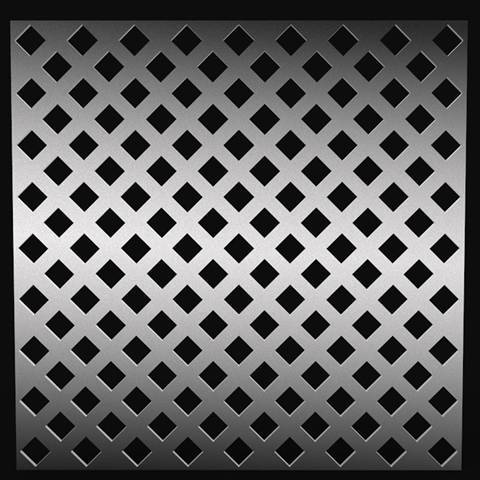

SQPM-03: Qd 6-14方孔穿孔金屬
| 型號 | Qd 6-14 |
|---|---|
| A (mm) | 6 |
| T (mm) | 14 |
| P (%) | 36.7 |
| 厚度 (mm) | 1.0–3.0 |
| 材料 | SS、Gal、Al、Cu等. |
| 尺寸 | 1 m × 2 m 1.22米× 2.44米 自定義可用 |
| 項目 | A (mm) | T (mm) | P (%) |
|---|---|---|---|
| Qd 3-7.5 | 3 | 7.5 | 32.0 |
| Qd 4-10 | 4 | 10 | 32.0 |
| Qd 5-12 | 5 | 12 | 34.7 |
| Qd 6-14 | 6 | 14 | 36.7 |
| Qd 12-24 | 12 | 24 | 50.0 |
| Qd 12-25.5 | 12 | 25.5 | 44.3 |
| Qd 12-27 | 12 | 27 | 39.5 |
| Qd 15-30 | 15 | 30 | 50.0 |
| Qd 18-40 | 18 | 40 | 40.5 |
| Qd 19-40 | 19 | 40 | 45.1 |
| Qd 20-55 | 20 | 55 | 26.4 |
| Qd 30-65 | 30 | 65 | 42.6 |
| Qd 35-60 | 35 | 60 | 68.1 |
| Qd 45-74 | 45 | 74 | 74.0 |
| Qd 100-170 | 100 | 170 | 69.2 |
SQPM-02: Qv 5-8方孔穿孔金屬
| 型號 | Qv 5-8 |
|---|---|
| A (mm) | 5 |
| T (mm) | 8 |
| P (%) | 39.1 |
| 厚度 (mm) | 1.0–2.0 |
| 材料 | SS、Gal、Al、Cu等. |
| 尺寸 | 1 m × 2 m 1.22米× 2.44米 自定義可用 |
| 項目 | A (mm) | T (mm) | P (%) |
|---|---|---|---|
| Qv 3-6 | 3 | 6 | 25 |
| Qv 4-8 | 4 | 8 | 25 |
| Qv 5-8 | 5 | 8 | 39.1 |
| Qv 5-10 | 5 | 10 | 25 |
| Qv 6.3-12.5 | 6.3 | 12.5 | 25 |
| Qv 8-12 | 8 | 12 | 44.5 |
| Qv 8-14 | 8 | 14 | 444 |
| Qv 10-16 | 10 | 16 | 39 |
| Qv 11-24 | 11 | 24 | 21 |
| Qv 12-18 | 12 | 18 | 44 |
| Qv 15-21 | 15 | 21 | 51 |
| Qv 18-24 | 18 | 24 | 56 |
| Qv 20-28 | 20 | 28 | 50.5 |
| Qv 25-36 | 25 | 36 | 48 |
| Qv 30-40 | 30 | 40 | 56 |
| Qv 31.5-40 | 31.5 | 40 | 62 |
| Qv 35-45 | 35 | 45 | 60 |
SQPM-01: Qg 5.5-7.5方孔穿孔金屬
| 型號 | Qg 5.5-7.5 |
|---|---|
| A (mm) | 5.5 |
| T (mm) | 7.5 |
| P (%) | 53.8 |
| 厚度 (mm) | 0.8–2.0 |
| 材料 | SS、Gal、Al、Cu等. |
| 尺寸 | 1米× 2米 1.22米× 2.44米 自定義可用 |
| 項目 | A (mm) | T (mm) | P (%) |
|---|---|---|---|
| Qg 3-5 | 3 | 5 | 36.0 |
| Qg 5-7.5 | 5 | 7.5 | 44.4 |
| Qg 5-8 | 5 | 8 | 39.1 |
| Qg 5.5-7.5 | 5.5 | 7.5 | 53.8 |
| Qg 5.5-8 | 5.5 | 8 | 47.3 |
| Qg 6-10 | 6 | 10 | 36.0 |
| Qg 6-12 | 6 | 12 | 25.0 |
| Qg 7-10 | 7 | 10 | 49.0 |
| Qg 8-10 | 8 | 10 | 64.0 |
| Qg 8-12 | 8 | 12 | 44.4 |
| Qg 10-12 | 10 | 12 | 69.4 |
| Qg 10-14 | 10 | 14 | 51.0 |
| Qg 10-15 | 10 | 15 | 44.4 |
| Qg 10-20 | 10 | 20 | 25.0 |
| Qg 15-20 | 15 | 20 | 56.3 |
| Qg 19-22 | 19 | 22 | 74.6 |
| Qg 20-28 | 20 | 28 | 51.0 |
| Qg 20-40 | 20 | 40 | 25.0 |
| Qg 22-44 | 22 | 44 | 25.0 |
| Qg 25-50 | 25 | 50 | 25.0 |
| Qg 30-35 | 30 | 35 | 73.5 |
| Qg 30-60 | 30 | 60 | 25.0 |
| Qg 40-50 | 40 | 50 | 64.0 |
| Qg 40-80 | 40 | 80 | 25.0 |
| Qg 50-100 | 50 | 100 | 25.0 |
